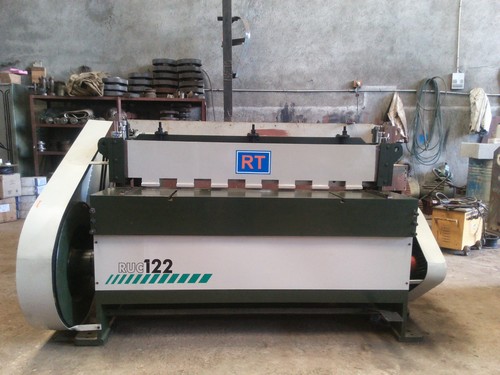

Under Crank Shearing Machine
With our immense domain expertise, we are involved in offering Under Crank Shearing Machine. This machine is designed and fabricated using supreme class factor inputs and cutting edge technology at par with international standards. The offered machine is appreciated for high performance, less maintenance, sturdy construction, corrosion resistance, easy to install and longer service life. Moreover, we offer this Under Crank Shearing Machine in different specifications that can also be customized as per the needs of clients.
Mechanical Under Crank Shearing Machine
| Technical Specifications | ||||||||||
| DESCRIPTION | 1270 x 2 | 1525 x 2 | 2030 x 2 | 2540 x 2 | 3125 x 2 | 1270 x 4 | 1525 x 4 | 2030 x 4 | 2540 x 4 | 3125 x 4 |
| Cutting Cap. Thick Of M.S. | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 4 |
| Cutting Cap. Length | 1270 | 1525 | 2030 | 2540 | 3125 | 1270 | 1525 | 2030 | 2540 | 3125 |
| Standard Front Gauge | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 750 | 750 | 750 |
| Standard Rear Gauge | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 750 | 750 | 750 |
| Table Height | 800 | 800 | 850 | 850 | 850 | 850 | 850 | 900 | 900 | 900 |
| Table Width | 325 | 325 | 350 | 350 | 350 | 350 | 350 | 375 | 375 | 375 |
| Blade Length | 1270 | 1525 | 2030 | 2540 | 3125 | 1270 | 1525 | 2030 | 2540 | 3125 |
| Blade Width | 63 | 63 | 63 | 63 | 63 | 72 | 72 | 72 | 72 | 72 |
| Blade Thickness | 14 | 14 | 14 | 14 | 14 | 18 | 18 | 18 | 18 | 18 |
| Stroke Per Minute | 50 | 50 | 50 | 40 | 40 | 40 | 40 | 30 | 30 | 30 |
| Hold Down To Knife Edge | 25 | 25 | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 |
| Machine Length | 2050 | 2300 | 2910 | 3420 | 4000 | 2150 | 2410 | 2960 | 3470 | 4050 |
| Machine Width | 1270 | 1270 | 1325 | 1325 | 1325 | 1325 | 1325 | 1400 | 1400 | 1400 |
| Machine Height | 1225 | 1225 | 1320 | 1320 | 1320 | 1320 | 1320 | 1375 | 1375 | 1375 |
| Main Motor HP/KW | 2/1.5 | 3/2.2 | 5/3.7 | 5/3.7 | 7.5/5.6 | 5/3.7 | 5/3.7 | 7.5/5.6 | 7.5/5.6 | 10/7.5 |
| Weight Approx. | 1500 | 1700 | 2200 | 2800 | 3300 | 2100 | 2300 | 2800 | 3800 | 4800 |
|
|
|
|
|
|
|
|
|
|
|
|
| | ||||||||||
